Camlock Coupling
B.S.Hydro is the manufacturer well known in Indiaforcamlock coupling with large variety of material having end connection and sizes. Camlock coupling is designed in order to preventleakagewith full flow of fluids. Camlock couplings have a leak proofconnection without using any kind of tools. It can managemultiple varieties of liquids, semi solids, fluids, paste, and powderof bulk material transfers. Persistently these fluid lines get connected and disconnected in seconds with camlock design. It reduces the material loss and down time.
Working principal

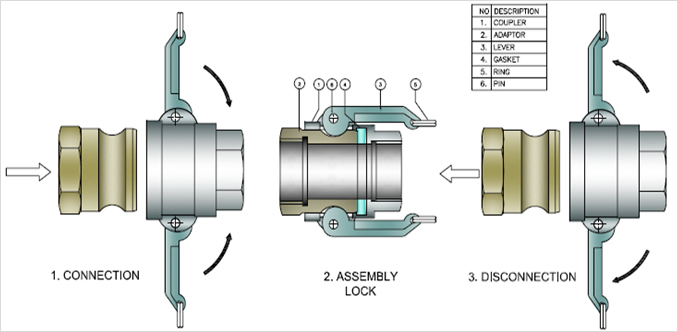

Camlock coupling uses lever lock principle to work. The adaptor is pushed in the coupler when the coupler levers are opened. By closing the lever, the adaptor is secured and locked in it. This provides in a leak proof joint by simultaneously compressing the seal. By pulling the adaptor out of the coupler, the disconnection is done. Persistently these fluid lines get connected and disconnected in seconds with camlock design.
- Size : 1/8”,1/4”,3/8”,1/2”,3/4”,1”, 1 ½”, 2”
- End connection : BSP/NPT Female threads and male threads arms
- Pressure rating : 5000 PSI ( 350 BAR)
- Locking device : Ball Lock
- Seal : Nitrile, Viton
- Material : steel, Stainless Steel, Brass, Aluminum, Polypropylene
Specifications:
- Bulk material transfer made of
- Oil
- Water
- Paste, powder
- Solvents
- Semi solids, slurry and abrasive materials.
- Liquid handling
- Wineries
Applications:
- Tank trailers
- Tank farms
- Pharmaceutical for connections that are made frequently such as to holding tanks, batch equipment wash lines and waste lines
- Refineries
- Petroleum industry
- Tank trucks
- Where “leak proof”, speed and simplicity of connection and utmost reliability are required Breweries
What does a camlock coupling do?
A camlock coupling is usually made of materials like Alluminum, Stainless Steel, Brass, and Polypropylene. A camlock fitting is also known as cam and a groove coupling. This camlock coupling is a form of hose coupling. This proves to be simple and a reliable means of connection and disconnection of the hose, by quick method without using any tools. A type of fitting that allows the quick connection and disconnection of components is known as a camlock coupler (also referred to as cam lever couplings or cam and groove couplings). These camlock couplings are sometimes used in the place of a union. They are proved to be faster in opening and closing. These camlock coupling usually are rated for low pressure than unions. These Camlock couplings usually exist as a threaded fitting. The camlockcoupling is mostly used for combustion cannons and are known to be as quick means to change between the barrels. They are used to hold burst disks and for breech loading. A camlock, or more usually known as Cam-Lok, is acompatible and interchangeable electrical connector usuallypassed down in temporary electrical power for production and distribution extensively used in the North America. Camlock coupling uses lever lock principle to work. The adaptor is pushed in the coupler when the coupler levers are opened. By closing the lever, the adaptor is secured and locked in it. This provides in a leak proof joint by simultaneously compressing the seal. By pulling the adaptor out of the coupler, the disconnection is done. These camlock couplings are usually found only in professional environments, where the connections are performed by qualified personnel.Temperature changes do not affect the working of camlock coupling.
They are generally more applicable where more than 50 A is necessary or 3 phase temporary connections are used, and to consociate large generators or building disconnection to distribution of thepanels, or for the test of connections to load the bank equipment for generator load certification; most of the special events where the interconnection of entertainment lighting and sound equipment to power sources. These camlock couplings are usually found only in professional environments, where the connections are performed by qualified personnel.
We provide our camlock coupling in a good quality construction finish. We as the manufacturer of the camlock coupling, it is available in various different configuration’s choice that are depended on the specific demands of quality of our customers. As the leading manufacturers in the camlock coupling branch we make sure that the customers are given quick, tight leak proof connection of the pipes and hose support.
- Liquid handling
- Tank trailers
- Tank farms
- Pharmaceutical for connections that are made frequently such as to holding tanks, batch equipment wash lines and waste lines
- Refineries
- Petroleum industry
- Tank trucks
- Where “leak proof”, speed and simplicity of connection and utmost reliability are required Breweries
- Wineries
Applications:
B.S. Hydro is a well-known manufacturer and exporter of hydraulics and industrial engineeringstandard services of product which is being utilized as connecting components or device for the products like pipes systems, our products are long lasting. In products like cam coupler or camlock coupling, we are the known manufacturers having vast experience in services of design and development for any types of hydraulic tube fittings, Valves, Flanges, Pipe Clamps, Hoses and other product.Our product are been supplied to various industries like aircraft equipment manufacturer , steel plant , oil and gas industries , railways , marine industries , automobiles and heavy vehicle manufacturer and many otherdifferent applications in variety of industries. B.S. Hydro hasenoughand large ready stock of all types of fittings valves, hoses, and various devices in our Mumbai go-down. B.S.Hydro is the manufacturersand also exporters of all productsto the various overseas countries. This camlock coupling company is a Mumbai based. Located in Mumbai, India the camlock coupling production and its function from our company is proven to have best quality. These engineering devices have the best function and services in India.
